EV-25 SINGLE CHAMBER VACUUM PACKER

EV-25 SINGLE CHAMBER VACUUM PACKER
EV-25 SINGLE CHAMBER VACUUM PACKER - Image 2

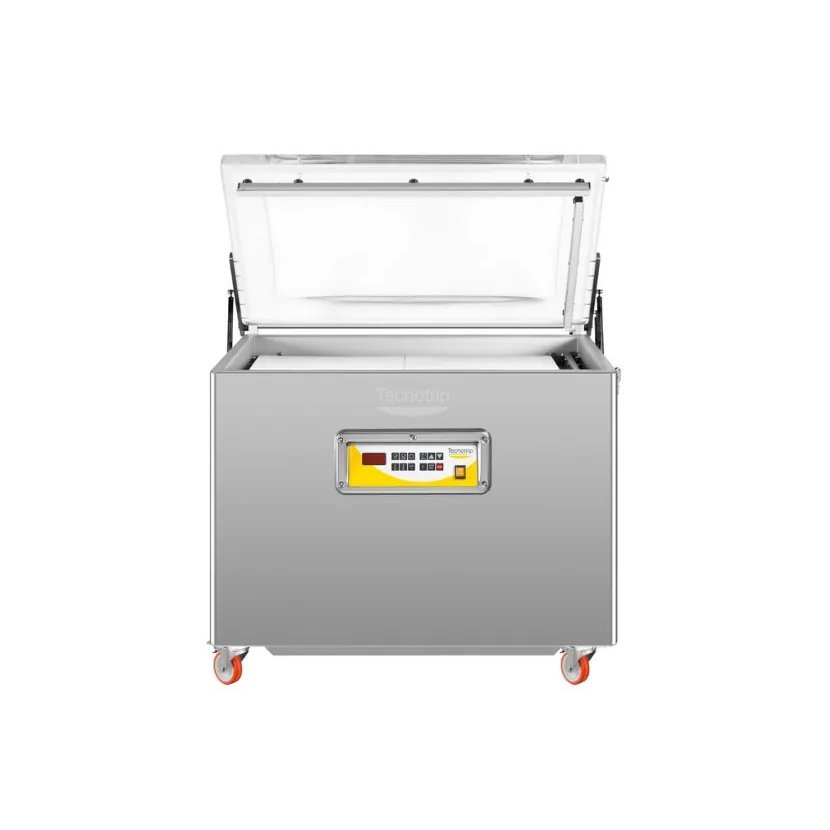

Tecnotrip EV-25 single chamber vacuum packer

EV-25 SINGLE CHAMBER VACUUM PACKER

Price on request

EV-25 single chamber vacuum packer by Tecnotrip: vacuum, sealing and vacuum + gas (MAP), chamber 1118 × 715 × 218 mm, pump 100 or 150 m³/h (Busch; 150 m³/h also Rietschle).

Request a no-obligation quote.

Add to quote
Download technical data sheet (PDF, 175 KB)
Request a quote on WhatsApp

Questions? Call us on +34 967 219 649 or message us on WhatsApp
We reply to quote requests within 24 hours.

SKU: 222000090 Categories: , ,

Description

EV-25 single chamber vacuum packer

The EV-25 is a large-format single chamber vacuum packer with a 1118 × 715 mm chamber for packing several bags at once or long, bulky products. Digital sensor-controlled programmer with 30 programs, prepared for MAP.

Ideal for cured sausage and fish factories, cheese makers, packing centres and caterers with medium and large production runs.

Advantages

  • Packing: Vacuum, sealing and vacuum + gas (MAP).
  • Chamber: 1118 × 715 × 218 mm.
  • Sealing bars: 1, 2 or 3 bars in several configurations.
  • Sealing types: Single, single + excess trimming and double (individually adjustable).
  • Vacuum pump: 100 or 150 m³/h (Busch; 150 m³/h also Rietschle).
  • Control panel: Digital sensor-controlled programmer, 30 programs.
  • Format: external dimensions 1230 × 875 × 1090 mm, weight 380 kg, power supply 220/380 V · 50/60 Hz · three-phase.
  • Easy cleaning and maintenance.

Tecnotrip reference: EV-25.

See also our other single chamber vacuum packers.

Technical data sheet · EV-25 SINGLE CHAMBER VACUUM PACKER

PDF · 175 KB · Main data, models and dimensions.

Open PDFDownload

Specifications

Weight 380 kg
Dimensions 121 × 80,2 × 108,6 cm
Model

EV-25
Brand

Tecnotrip
Type

Single chamber vacuum packer
Packing

Vacuum, sealing and vacuum + gas (MAP)
External dimensions

1230 × 875 × 1090 mm
Chamber

1118 × 715 × 218 mm
Sealing bars

1, 2 or 3 bars in several configurations
Sealing types

Single, single + excess trimming and double (individually adjustable)
Vacuum pump

100 or 150 m³/h (Busch; 150 m³/h also Rietschle)
Control panel

Digital sensor-controlled programmer, 30 programs
Cycles per minute

2–3
Power

2.7 / 4 kW
Power supply

220/380 V · 50/60 Hz · three-phase
